Customized engine is well matched with driveline system for maximum torque output at low rpm;
Advanced variable displacement hydraulics improve work efficiency and reduce oil consumption;
Wide opening spread hitch design, tapered roller bearings and dependable key components deliver strong load capacity;
Automatic transmission + FNR provide comfortable operation;
Pressurized FOPS/ROPS cab, 309°panoramic visibility for increased comfort and safety;
Forward-tilting engine hood offers wide open access to the engine compartment;
Ground level servicing;
Single layer, parallel-arranged radiator is easy to clean.

Get The Latest Quote

Description

Operating weight	17,900 kg
Standard bucket	3.5 m³
Rated power	162 kW (217 hp / 220 ps) @ 2,200 rpm
Maximum gross power	162 kW (217 hp / 220 ps) @ 2,200 rpm
Rated load capacity	5,500 kg
Hydraulic cycle time	9.3 s
Raise time	5.8 s
Maximum travel speed	38 km/h
Tipping load-full turn	12,600 kg
Bucket breakout force	180.7 kN
Dump clearance, full height discharge	2,978 mm
Dump reach, full height discharge	1,231 mm
Model	Cummins 6LTAA9.3
Aspiration	Turbocharged ? air-to-air intercooled
Length with bucket down	8,100 mm
Width over tires	2,750 mm
Cab height	3,500 mm
Turning radius, outside of tire	6,308 mm
Bucket capacity	2.7-5.6 m³
General purpose bucket	3.5 m³
Light material bucket	5.6, 6.0 m³
Rock bucket	2.7, 3.0 m³

Operating weight	18,100 kg
Standard bucket	3.5 m³
Rate power	162 kW (217 hp / 220 ps) @ 2,200 rpm
Maximum gross power	162 kW (217 hp / 220 ps) @ 2,200 rpm
Rated load capacity	5,500 kg
Hydraulic cycle time	9.4 s
Raise time	5.5 s
Maximum travel speed	38.6 km/h
Tipping load-full turn	12,600 kg
Bucket breakout force	180.7 kN
Dump clearance, full height discharge	2,978 mm
Dump reach, full height discharge	1,231 mm
Model	Cummins QSL9.3
Aspiration	Turbocharged & air-to-air intercooled
Length with bucket down	8,390 mm
Width over tires	2,750 mm
Cab height	3,500 mm
Turning radius, outside of tire	6,207 mm
Bucket capacity	2.7-5.6 m³
General Purpose	3.5 m³
Light material	5.6 , 6.0 m³
Heavy-rock	2.7 , 3.0 m³

Operating weight	20,150 kg
Standard bucket	3.2 m³
Rated power	168 kW (225 hp / 228 ps) @ 2,000 rpm
Maximum gross power	183 kW (245 hp / 248 ps) @ 1,700 rpm
Rated load	5,500 kg
Total cycle time	10.2 s
Raise time	5.3 s
Maximum travel speed	38 km/h
Tipping load-full turn	13,647 kg
Bucket breakout force	153 kN
Dump clearance, full height discharge	2,862 mm
Dump reach, full height discharge	1,207 mm
Model	Cummins B6.7
Aspiration	Turbocharged & air-to-air intercooled
Length with bucket down	8,303 mm
Width over tires	2,750 mm
Cab height	3,450 mm
Turning radius, outside of tire	6,195 mm
Bucket capacity	3.0-6.0 m³
General purpose bucket:	3.2 m³
Light material bucket	5.6 m³
Rock bucket	2.5, 2.7, 3.0 m³

Product Advantages

Robust Structural and System Design

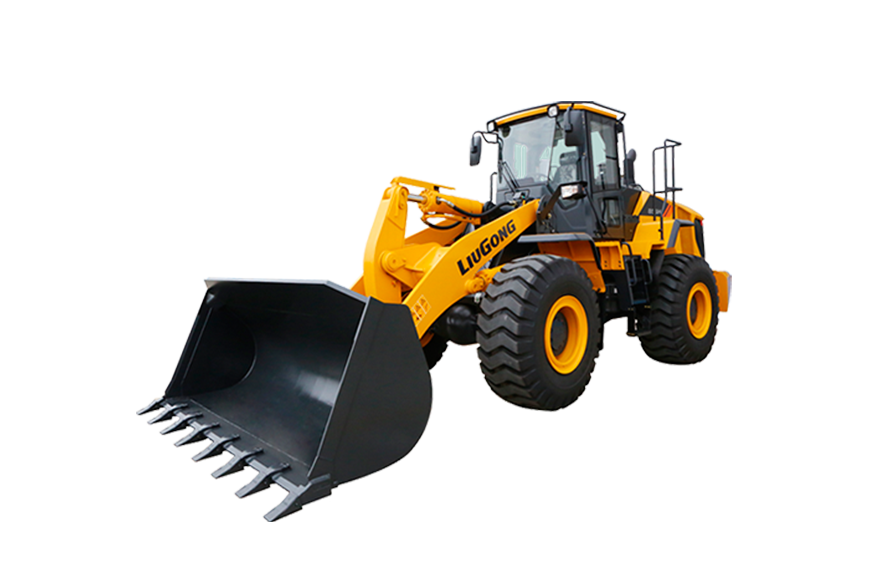

The 856H compact wheel loader features a modular chassis optimized for heavy-duty tasks, incorporating a parallel radiator layout that improves thermal efficiency and simplifies cleaning. The FOPS/ROPS cabin is pressurized to enhance operator safety in compliance with industry standards, while offering extensive visibility for precise maneuvering. Its structural design includes easy ground-level access for maintenance, reducing service time and ensuring uptime. Integration of reliable Cummins engine variants supports operational adaptability. These innovations make the loader a trustworthy option for wheel loader dealers and operators seeking durable, maintainable equipment capable of sustaining rigorous workloads.

Superior Performance and Operator Efficiency
Performance is enhanced through a 162 kW engine delivering consistent power output, coupled with a seamless automatic transmission system that simplifies directional changes. The loader’s hydraulic configuration allows rapid cycle times and substantial breakout force, increasing productivity in loading and bulk handling tasks. Operator usability is prioritized with intuitive controls housed within a panoramic visibility cabin, reducing fatigue and improving precision. Such features contribute to higher operational efficiency and ROI for users and wheel loader dealers looking to maximize machine utilization and lower cost per ton handled across demanding job sites.

Use Scenarios

Bulk-Material Handling in Yard and Stockpile Management
In industrial yards and large stockpile environments, the compact wheel loader 856H excels by providing dependable material transfer capabilities. It supports continuous loading and repositioning of bulk aggregates, sand, and gravel using its standard 3.5 m³ bucket. The FOPS/ROPS cabin ensures operator safety during prolonged operations amidst high-noise and dust conditions, complying with workplace safety regulations. Its powerful hydraulic system enables efficient breakout force and fast cycle times, integrating smoothly with site workflows to maintain pace with project demands. This loader is a preferred asset for wheel loader dealers catering to material handling and logistics industries.

Construction Site Cleanup and Debris Removal
The 856H serves a vital role in construction environments, facilitating the removal of site debris and materials with enhanced control and reliability. Its robust lifting capacity and hydraulic performance accommodate routine cleanup and surface leveling tasks, optimizing site readiness for subsequent phases. The cabin’s pressurized safety features help mitigate operator risk in dynamic workspaces, aligned with regulatory compliance. Seamless ground-level service access reduces maintenance interruptions, allowing consistent operations that adapt to fluctuating site conditions. Wheel loader dealers recommend this model for contractors requiring durable machines that improve worksite efficiency and safety standards.

FAQ

What bucket sizes are available for the Original Liugong compact wheel loader 856H?
The 856H supports bucket capacities ranging from 2.7 to 5.6 m³, with a standard bucket size of 3.5 m³. This flexibility allows precise adaptation for bulk-material handling across various site conditions, making it a versatile choice in the compact wheel loader category.

What engines power the 856H, and how do they impact performance?
The 856H is powered by Cummins engines including 6LTAA9.3, QSL9.3, and B6.7, delivering a rated power of 162 kW (217 hp / 220 ps) at 2,200 rpm. These engines ensure robust output and efficiency required for heavy-duty tasks typically expected from a professional wheel loader.

How does the 856H ensure operator safety and comfort during operation?
Operator protection is assured with the pressurized FOPS/ROPS cab providing 309-degree panoramic visibility. This design enhances safety and situational awareness while reducing operator fatigue during prolonged use on construction and industrial sites.

What maintenance features facilitate servicing the Liugong 856H on-site?
The 856H offers ground-level servicing and a forward-tilting engine hood, granting easy access to the engine compartment and radiators. This setup simplifies routine maintenance and reduces downtime, ensuring reliable, continuous operation in demanding work environments.
