| Operating weight |
20,400 kg |
| Standard bucket |
4.0 m³ |
| Rated power |
179 kW (240 hp / 243 ps) @ 2,200 rpm |
| Maximum gross power |
179 kW (240 hp / 243 ps) @ 2,200 rpm |
| Rated load capacity |
6,500 kg |
| Hydraulic cycle time |
9.3 s |
| Raise time |
5.2 s |
| Maximum travel speed |
35 km/h |
| Tipping load-full turn |
14,200 kg |
| Bucket breakout force |
180 kN |
| Dump clearance, full height discharge |
3,253 mm |
| Dump reach, full height discharge |
1,122 mm |
| Model |
Cummins 6LTAA8.9 |
| Aspiration |
Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down |
8,740 mm |
| Width over tires |
2,880 mm |
| Cab height |
3,500 mm |
| Turning radius, outside of tire |
6,650 mm |
| Bucket capacity |
3.0-6.0 m³ |
| General Purpose bucket |
4.0 m³ |
| Light material bucket |
5.8, 7.2 m³ |
| Rock bucket |
3.3, 4.0 m³ |
| Operating weight |
20,636 kg |
| Standard bucket |
4.0 m³ |
| Rated power |
180 kW (241 hp / 245 ps) @ 2,200 rpm |
| Maximum gross power |
190 kW (255 hp / 258 ps) @ 2,200 rpm |
| Rated load capacity |
6,500 kg |
| Hydraulic cycle time |
9.3 s |
| Raise time |
5.2 s |
| Maximum travel speed |
38 km/h |
| Tipping load-full turn |
14,742 kg |
| Bucket breakout force |
178 kN |
| Dump clearance, full height discharge |
3,253 mm |
| Dump reach, full height discharge |
1,122 mm |
| Model |
Cummins QSL9.3 |
| Aspiration |
Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down |
8,847 mm |
| Width over tires |
2,880 mm |
| Cab height |
3,500 mm |
| Turning radius, outside of tire |
6,687 mm |
| Bucket capacity |
3.0-6.0 m³ |
| General purpose bucket |
4.5 m³ |
| Light material bucket |
5.8, 7.2 m³ |
| Rock bucket |
3.3, 4.0 m³ |
| Rock bucket |
3.3, 4.0 m³ |
Engineering Solutions for Heavy-Duty Material Handling

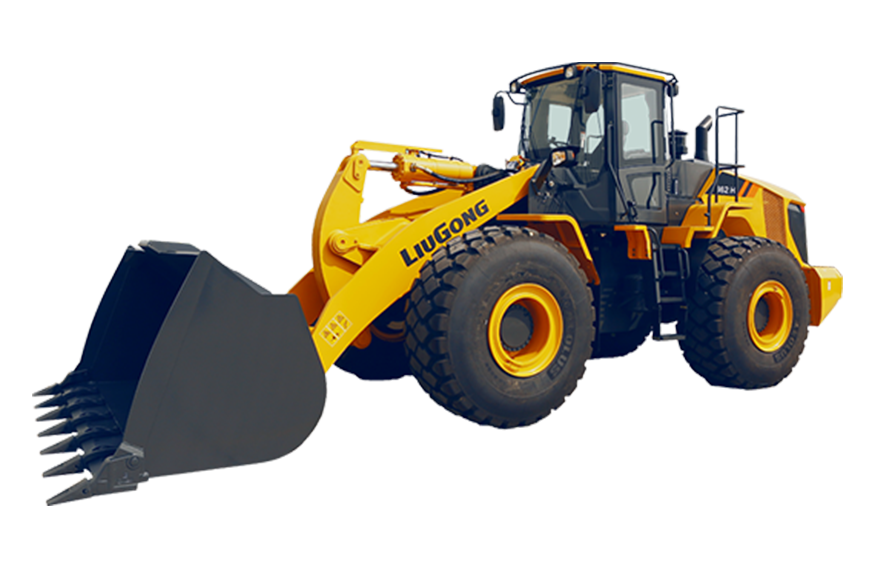

The Bigger Liugong 862H is engineered for businesses requiring reliable, efficient loading solutions with an operating weight of approximately 20,400 kg. Designed for construction, mining, and industrial sectors, this medium wheel loader supports heavy lifting and material handling operations. Its target users include equipment managers and procurement specialists valuing equipment that balances power and operational stability. OEM and ODM support further position the 862H as a versatile product in the wheel loader manufacturers portfolio, fulfilling diverse project specifications.
Advanced Specifications Optimizing Performance and Control
This wheel loader machine is equipped with Cummins 6LTAA8.9 or QSL9.3 engines delivering rated power up to 180 kW and maximum gross power of 190 kW. Its automatic transmission and advanced hydraulics include a hydraulic cycle time of 9.3 seconds and raise time of 5.2 seconds, ensuring responsive operations. Bucket capacities range from 3.0 to 6.0 m³, with options tailored to general, light material, and rock applications. The robust frame and heavy-duty axle underlie the machine’s rated tipping load capacity of up to 14,742 kg, optimizing durability and safety in demanding environments.
Integration in Industrial and Construction Workflows
The Bigger Liugong 862H is specifically suited for industrial, mining, and large-scale construction environments where high productivity and machine reliability are critical. Its pressurized FOPS/ROPS cab provides operator safety with a 310° panoramic view, supporting extended operational periods. Maintenance efficiencies are enhanced through a forward-tilting engine hood and ground-level service access, facilitating uptime in field conditions. This china wheel loader integrates seamlessly with broader equipment fleets and project management systems, delivering measurable ROI through efficient load handling and safety compliance.
Product Advantages
Structural and System Design Innovations
The Bigger Liugong 862H incorporates heavy-duty axles and a reinforced frame design ensuring prolonged structural integrity under continuous load cycles. Its integration of automatic transmission within the powertrain improves controllability and operational smoothness—a critical feature for precision material handling by professional operators. The modular bucket system accommodates multiple attachments, increasing versatility while aligning with design standards prominent among wheel loader manufacturers in the medium wheel loader class, enhancing adaptability to varied project requirements.
Performance Efficiency and Operator-Oriented Usability
This model offers high torque and power outputs from Cummins engines optimized for fuel efficiency and compliance with emission standards. Its automatic transmission and advanced hydraulic system reduce operator fatigue while maintaining consistent cycle times, increasing productivity and operational uptime. The ergonomically designed FOPS/ROPS cab with vibration reduction enhances safety and comfort, critical for user performance in extended shifts. A key value lies in its maintenance-friendly design, featuring ground-level access and a tiltable engine hood, streamlining service procedures for engineers and fleet managers.
Use Scenarios
Mining Site Material Handling and Load Management
In mining environments, the Bigger Liugong 862H serves as a pivotal medium wheel loader for loading ore, transporting aggregates, and sustaining continuous material flow. Its robust heavy-duty axle and high breakout force provide reliable performance under rigorous load demands. The machine’s compliance with safety regulations is supported by its FOPS/ROPS cab and high tipping load capacity, ensuring operator protection and operational reliability. When integrated into mining logistics systems, the 862H contributes to streamlined outbound processing and reduced cycle times, enhancing overall site productivity.
Infrastructure Construction and Earthmoving Projects
Within large-scale construction and infrastructure projects, this china wheel loader supports tasks ranging from material transport to site clearance. Its bucket versatility allows adaptation to varying load types including soils, rocks, and building materials. The machine’s automatic transmission and hydraulic responsiveness facilitate seamless interaction with project timelines and equipment fleets. Maintenance features like the forward-tilting hood reduce downtime during routine servicing, enabling continuous operation consistent with heavy workloads typical in road building and foundation preparation scenarios.
About Us
AMDIGGER is a comprehensive service provider of engineering machinery products, offering one-stop solutions for mines, construction projects, and industrial yards worldwide. Our product range includes excavators, loaders, bulldozers, rollers, graders, forklifts, truck cranes, and mining trucks. We are dedicated to delivering complete equipment solutions tailored to diverse project needs.
AMDIGGER partners with internationally recognized manufacturers such as LIUGONG, XCMG, SHANTUI, and OOK, and also markets our own "AMDIGGER" brand series. To meet professional, personalized, and diversified customer requirements, we continuously explore industry technologies and product applications, providing ODM and OEM customization services. Our products are exported to over 100 countries and regions, earning trust and recognition from users globally.
With a team of experienced engineers and sales professionals, AMDIGGER is committed to supplying safe, reliable, efficient, and intelligent engineering machinery alongside timely and thorough support. Adhering to the principle of "creating higher value for customers," we invite construction machinery dealers, service providers, and users worldwide to engage with us for mutual development and successful partnerships. Contact our technical team for expert help!
FAQ
What are the main engine options available for the Bigger Liugong 862H wheel loader?
The Bigger Liugong 862H wheel loader features reliable Cummins engine options: the 6LTAA8.9 rated at 179 kW and the QSL9.3 with up to 190 kW gross power. These engines provide high torque necessary for demanding operations, making this wheel loader machine suitable for heavy-duty material handling with strong power delivery.
Can the Bigger Liugong 862H be customized with different bucket sizes?
Yes, the Bigger Liugong wheel loader 862H supports bucket capacities ranging from 3.0 to 6.0 m³. Available are general-purpose buckets (4.0 m³ standard and up to 4.5 m³), rock buckets, and light material buckets, allowing tailored configurations to fit specific job requirements efficiently.
What maintenance features improve uptime for this medium wheel loader?
Designed for ease of service, this medium wheel loader includes a forward-tilting engine hood and ground-level service access, enabling quick inspection and routine maintenance in field conditions. A single-layer radiator with large fin spacing further enhances cooling efficiency and reduces downtime.
How does the Bigger Liugong 862H address operator safety and comfort?
The 862H features a pressurized FOPS/ROPS cabin with a 310° panoramic view to maximize visibility and safety during operation. Its ergonomic design and three-stage vibration reduction system improve operator comfort over long shifts, increasing productivity while adhering to stringent safety standards for wheel loader manufacturers.
