Z-bar linkage with large transmission ratio uses high pressure hydraulics for increased breakout force.
Heavy-duty wet type brake axle and braking system ensure the reliability and durability of the product even under tough work conditions.
Fully-sealing and micro-pressuring system ensures the cab is clean and quiet. Silicone oil shock absorber reduces vibration and improves ride comfort.
Improved ergonomics for cab design with all control switches in easy reach of the operator.

Get The Latest Quote

Description

Operating weight	23,974 kg
Standard bucket	4.2 m³
Rated power	205 kW (275 hp / 279 ps) @ 2,000 rpm
Maximum gross power	220 kW (295 hp / 299 ps) @ 2.000 rpm
Rated load capacity	7,000 kg
Hydraulic cycle time	10.3 s
Raise time	5.7 s
Maximum travel speed	38.3 km/h
Tipping load-full turn	16,765 kg
Bucket breakout force	203 kN
Dump clearance, full height discharge	3,151 mm
Dump reach, full height discharge	1,309 mm
Model	Cummins 6LTAA8.9
Aspiration	Turbocharged & air-to-air intercooled
Length with bucket down	9,150 mm
Width over tires	2,970 mm
Cab height	3,580 mm
Turning radius, outside of tire	6,625 mm
Bucket capacity	4.2-8.0 m³
General Purpose bucket	4.2 m³
Light material bucket	6.0, 7.0, 8.0 m³
Rock bucket	3.5, 4.2 m³

Operating weight	25,170 kg
Standard bucket	4.2 m³
Rated power	213 kW (286 hp / 290 ps) @ 2,000 rpm
Maximum gross power	233 kW (312 hp / 317 ps) @ 2,000 rpm
Rated load capacity	7,000 kg
Hydraulic cycle time	10.6 s
Raise time	5.8 s
Maximum travel speed	40 km/h
Tipping load-full turn	17,255 kg
Bucket breakout force	203 kN
Dump clearance, full height discharge	3,151 mm
Dump reach, full height discharge	1,309 mm
Model	Cummins L9
Aspiration	Turbocharged & air-to-air intercooled
Length with bucket down	9,150 mm
Width over tires	2,970 mm
Cab height	3,580 mm
Turning radius, outside of tire	6,625 mm
Bucket capacity	4.2-8.0 m³
General Purpose bucket	4.2 m³
Light material bucket	6.0, 7.0, 8.0 m³
Rock bucket	3.5, 4.2 m³

Product Advantages

Structural and System Engineering Excellence

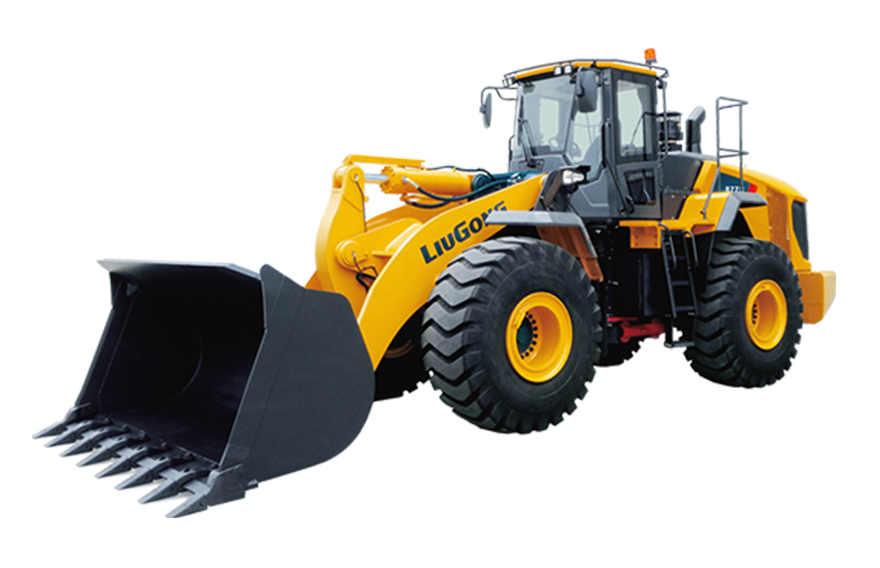

The structural design of the 877H integrates a heavy-duty chassis combined with a robust Z-bar linkage, engineered for enhanced lifting and breakout force. This structural integrity is complemented by a heavy-duty wet-type brake axle system, providing reliable stopping power and maintenance resilience. The cab’s fully sealed and micro-pressurized environment is designed to filter out dust and noise, reflecting thoughtful design adaptations that protect operator health and safety. These features exemplify engineering synergy from top wheel loader manufacturers who prioritize machine longevity and ease of serviceability. Additionally, the machine’s modular hydraulic components facilitate straightforward maintenance and adaptability, aligning with the extensive system requirements typical of Large Wheel Loaders in demanding industrial contexts.

Performance Efficiency and Operator-Centric Features
Performance-wise, the 877H offers a competitively efficient hydraulic cycle time of 10.3 seconds and a maximum travel speed of 38.3 km/h, delivering operational agility on site. Ergonomically, all control interfaces are positioned within easy reach, reducing operator fatigue and increasing precision during material handling. The vibration-damping silicone oil shock absorbers further stabilize ride quality under heavy load conditions. Powered by reliable Cummins engines, the loader provides consistent power output with optimized fuel efficiency, contributing to cost-effective operation. These attributes make it a valuable asset in productivity-focused environments, supporting system integration where heavy-duty loaders must function seamlessly alongside backhoe loader machinery within comprehensive project workflows.

Use Scenarios

Efficient Material Handling in Mining and Construction Sites
In mining and construction environments, the Liugong 877H operates as a critical asset for tasks such as earthmoving, loading raw materials, and stockpile management. Its 7,000 kg rated load capacity and hydraulic system enable rapid excavation and transport cycles, which are essential for maintaining operational throughput. The machine’s integration with existing Large Wheel Loaders and backhoe loader fleets promotes workflow continuity, allowing project managers to synchronize equipment utilization efficiently. With its heavy-duty braking system and robust linkage, it complies with safety and performance standards mandatory in these sectors. This loader improves material turnover speeds and optimizes resource allocation, enhancing overall project delivery efficacy.

Fleet Integration and Operator Training for Equipment Synergy
When deployed within mixed fleets including backhoe loader units, the 877H supports operational versatility through its adaptable bucket capacities and ergonomic controls designed for operator comfort during intensive shifts. As part of comprehensive operator training programs, the machine’s standardized interface allows quick skill acquisition, aligning performance expectations with safety protocols. Maintenance strategies benefit from the loader’s modular design, facilitating scheduled servicing aligned with fleet-wide preventative maintenance plans. Integration into existing site management software further enhances performance tracking and lifecycle management, solidifying its role as a dependable resource in fleet operations led by prominent wheel loader manufacturers servicing heavy industrial environments.

FAQ

What is the rated load capacity and bucket size options for the Liugong wheel loader 877H?
The Liugong 877H loader offers a rated load capacity of 7,000 kg and comes with bucket capacities ranging from 4.2 to 8.0 m³. This range accommodates diverse material handling needs, making it a versatile choice among large wheel loaders for various industrial applications.

Can the Liugong 877H bucket capacity be customized within the specified range?
While the product overview specifies bucket sizes from 4.2 to 8.0 m³, specific customization options are not detailed. Buyers seeking tailored bucket configurations should consult AMDIGGER or authorized wheel loader manufacturers to confirm availability and fitment details.

What engine powers the Liugong 877H, and how does it support operational efficiency?
The 877H is powered by Cummins 6LTAA8.9 or L9 engines, delivering rated power of 205 kW and up to 220 kW gross power. This powertrain combination ensures robust performance and fuel efficiency, supporting continuous heavy-duty operations in demanding worksite conditions.

What maintenance considerations are recommended for long-term operation of this heavy-duty loader?
Although a specific maintenance schedule is not provided, routine inspection of hydraulic components, brakes, and engine systems aligned with typical practices for backhoe loader class equipment is advisable. Professional servicing through AMDIGGER ensures operational reliability and safety across the loader’s lifespan.
