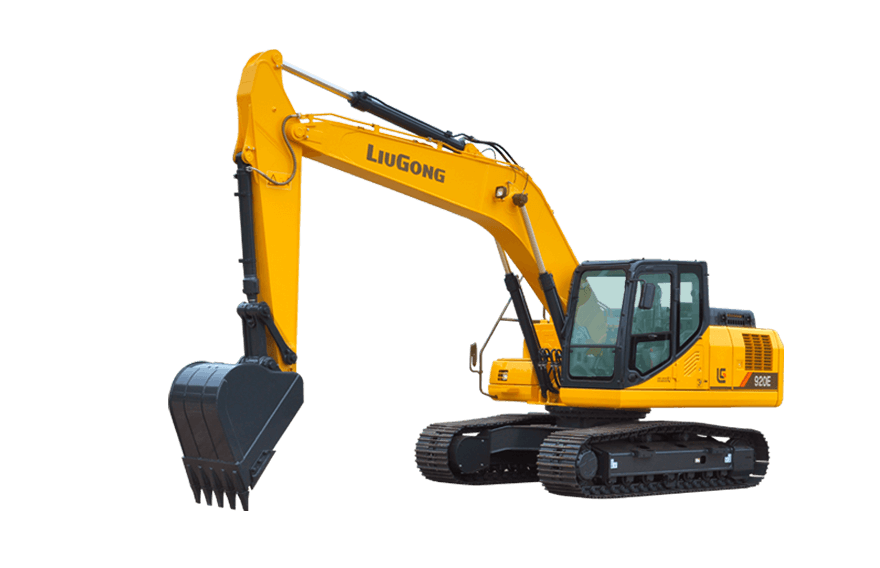

Compact excavator dealer Liugong 920E bucket manufacture

  • Unmatched performance driven by the Cummins Engine enhances torque output with more power and breakout force at lower engine speeds.
  • Options for auxiliary hydraulic piping include bidirectional variable high flow line, an additional line for rotating attachments and also a single acting line. The quick coupler further ensures you get the most out of your machine by easily switching between a wide range of attachments to suit any application.
  • Ergonomically designed cab for LiuGong E series excavator, with great visibility, expansive room, new multi-function LCD monitor, automatic air conditioner, large storage space, provide most comfortable working environment
  • Hydraulic request signals detect activity, decreasing and increasing engine speed as required. Power is supplied only as needed, achieving optimum fuel efficiency.
  • Compact excavator dealer Liugong 920E bucket manufacture

Description

Operating weight 21500 kg
Engine power 112 kW (150 hp) @ 1950 rpm
Std. Bucket capacity 1.0 m3
Travel speed(High) 5.7 km/h
Travel speed(Low) 3.3 km/h
Maximum swing speed  12.5 rpm
Arm breakout force  97 kN
Arm breakout force Power boost 105 kN
Bucket breakout force 140 kN
Bucket breakout force Power boost  152.5 kN
Shipping length  9540 mm
Shipping width  2800 mm
Shipping height 3140 mm
Track shoe width (std) 600 mm
Boom  5710 mm
Arm  2915 mm
Digging reach  9870 mm
Digging reach on ground 9685 mm
Digging depth  6562 mm
Vertical wall digging depth 5080 mm
Cutting height 9945 mm
Dumping height  7170 mm
Minimum front swing radius  3090 mm
Model Cummins 6BTAA5.9-C150-Ⅱ
System maximum flow 2×224 L/min ( 2x59 gal/min)
System pressure 34.3 MPa
 Download Brochure


Operating weight 21500 kg
Engine power 124 kW (166 hp) @ 2050 rpm
Std. Bucket capacity 1.0 m³
Travel speed(High) 5.3 km/h
Travel speed(Low) 3.0 km/h
Maximum swing speed  10.5 rpm
Arm breakout force  97 kN
Arm breakout force Power boost 105 kN
Bucket breakout force 140 kN
Bucket breakout force Power boost  152.5 kN
Shipping length  9570 mm
Shipping width  2800 mm
Shipping height 3140 mm
Track shoe width (std) 600 mm
Boom  5710 mm
Arm  2915 mm
Digging reach  9870 mm
Digging reach on ground 9685 mm
Digging depth  6562 mm
Vertical wall digging depth 5080 mm
Cutting height 9945 mm
Dumping height  7170 mm
Minimum front swing radius  3090 mm
Model Cummins QSB7
System maximum flow 2×224 L/min ( 2x59 gal/min)
System pressure 34.3 MPa
