| Operating weight | 38800 kg |
| Engine power | 231 kW @ 2100 rpm |
| Std. Bucket capacity | 1.8 m³ |
| Travel speed(High) | 5.5 km/h |
| Maximum travel speed (Low) | 3.4 km/h |
| Maximum swing speed | 10 rpm |
| Arm breakout force | 196 kN |
| Bucket breakout force | 290 kN |
| Shipping length | 11300 mm |
| Shipping width | 3190 mm |
| Shipping height | 3800 mm |
| Track shoe width (std) | 600 mm |
| Boom | 6400 mm |
| Arm | 3200 mm |
| Digging reach | 11100 mm |
| Digging reach on ground | 10900 mm |
| Digging depth | 7340 mm |
| Vertical wall digging depth | 6460 mm |
| Cutting height | 10240 mm |
| Dumping height | 7160 mm |
| Minimum front swing radius | 4465 mm |
| Model | Cummins L9 |
| System maximum flow | 2×351 L/min |
| System pressure | 34.3 MPa |
| Operating weight | 38500 kg |
| Engine power | 264 kW @ 2100 rpm |
| Std. Bucket capacity | 1.8 m³ |
| Travel speed(High) | 5.5 km/h |
| Travel speed (Low) | 3.4 km/h |
| Maximum swing speed | 10 rpm |
| Arm breakout force | 196 kN |
| Bucket breakout force | 290 kN |
| Shipping length | 11300 mm |
| Shipping width | 3190 mm |
| Shipping height | 3800 mm |
| Track shoe width (std) | 600 mm |
| Boom | 6400 mm |
| Arm | 3200 mm |
| Digging reach | 11100 mm |
| Digging reach on ground | 10900 mm |
| Digging depth | 7340 mm |
| Vertical wall digging depth | 6460 mm |
| Cutting height | 10240 mm |
| Dumping height | 7160 mm |
| Minimum front swing radius | 4465 mm |
| Model | Cummins L9PLUS |
| System maximum flow | 2×351 L/min |
| System pressure | 34.3 MPa |
Functional Positioning and Target Users in Heavy Machinery Sectors

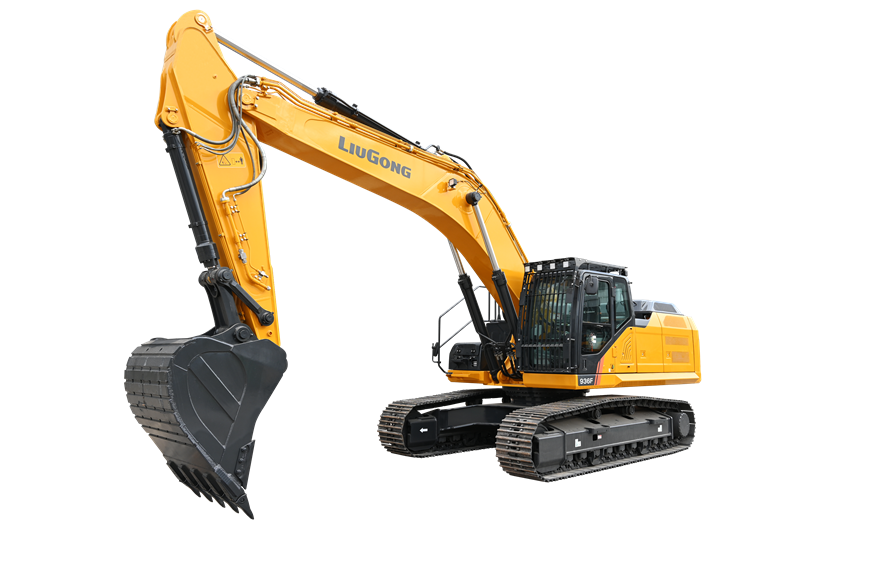

The Liugong 936F crawler excavator is engineered for professional operators and procurement managers requiring dependable machinery for high-demand digging, site preparation, and material handling tasks. Fitting seamlessly into fleets alongside wheel loader machines and medium lifting equipment, it is targeted at industries such as construction, mining, and infrastructure development where robust, versatile excavation performance is critical. This product provides an integrated solution combining power, operational efficiency, and safety enhancements tailored to professional environments requiring machinery capable of sustained heavy workloads with consistency.
Technical Features and Engineering Specifications of Liugong 936F
Equipped with advanced Cummins L9 and L9PLUS engine options delivering up to 264 kW, the Liugong 936F stands out among wheel loader manufacturers’ offerings through its high-capacity hydraulic system capable of 2×351 L/min at 34.3 MPa pressure. Its standard 1.8 m³ bucket, with a digging reach of 11,100 mm and breakout force of 290 kN, ensures exceptional drilling and loading capabilities. The machine’s structural enhancements, including longer undercarriages and heavier counterweights, provide superior stability during operation. Electro-hydraulic controls enhance precision and smooth boom movement, while integrated safety solutions such as a 360-degree camera facilitate improved site safety compliance and operational awareness.
Industry Applications and Operational Value Proposition
The 936F mini excavator suits complex construction environments and industrial projects where efficient, high-output machinery integration is essential. Its compatibility with other medium wheel loader equipment enables coordinated workflows in excavation, trenching, and material transport activities, optimizing site productivity. OEM and ODM customization provided by AMDIGGER allows for configurational flexibility to meet diverse project specifications globally. This crawler excavator’s robust design and electronic control systems contribute to lower downtime and enhanced operator safety, thus improving total cost of ownership and return on investment for procurement and project management stakeholders.
Product Advantages
Structural and System Design Benefits for Heavy-Duty Operations
The structural design of the Liugong 936F features optimized integration of longer undercarriages and heavyweight counterweights, improving stability on uneven or rugged terrain typical in major excavation sites. The reinforced boom and arm reduce stress by approximately 25%, which extends service life and reduces maintenance frequency. Incorporation of electro-hydraulic control technology allows precise operation adjustments enhancing machine responsiveness. These design elements align with advanced developments seen in china wheel loader technology, ensuring the 936F meets the stringent durability and operational robustness requirements expected by leading wheel loader manufacturers and construction fleets worldwide.
Performance Excellence and User-Centric Functionality
Operational performance is elevated by the powerful Cummins engine choices offering up to 264 kW output, enabling faster cycle times and improved breakout forces for demanding tasks. The sophisticated hydraulic system facilitates smooth, efficient loading and digging cycles, contributing to workforce productivity. Enhanced usability is supported by user-friendly controls, a 360-degree safety camera, and ground-level daily inspection access, which streamline daily maintenance and safety checks. These performance and ergonomic benefits promote improved operator efficiency and overall workflow integration within broader heavy machinery operations including complementary wheel loader machines.
Use Scenarios
Demonstrations and Training in Controlled Environments
In showroom and training environments, the Liugong 936F serves as a demonstration model for showcasing integrated power, reach, and operational stability required in excavation tasks. Equipped with features comparable to top-tier wheel loader technologies, the unit assists buyers and operators in evaluating its performance metrics including digging reach and breakout forces. Training sessions leverage the electro-hydraulic control system and camera safety features, enabling technicians and operators to acquire proficient handling skills relevant to site operations. This ensures smooth integration into existing fleet workflows and compliance with operational safety standards expected by medium-scale construction enterprises.
Confined-Space Excavation for Precision Projects
Within confined urban or industrial site conditions, the 936F enables excavation tasks requiring precise control and minimized disruption. Its enhanced stability from heavier counterweights and undercarriage length supports operations in restricted spaces, while the electro-hydraulic controls offer fine maneuvering capability critical for sensitive environments. This machine complements other china wheel loader equipment by sharing data-driven operational protocols and supporting collaborative site workflows. Compliance with safety and performance requirements ensures adaptability for utility trenching, underground infrastructure installation, or renovation projects where space and precision are paramount.
AMDIGGER is a comprehensive service provider of engineering machinery products, offering one-stop solutions for mines, construction projects, and yards worldwide. Our product range includes excavators, loaders, bulldozers, rollers, graders, forklifts, truck cranes, and mining trucks, designed to provide users with complete equipment solutions. We cooperate with internationally renowned manufacturers such as LIUGONG, XCMG, SHANTUI, and OOK, while also developing our own "AMDIGGER" branded products. To meet the professional, personalized, and diverse needs of customers, AMDIGGER continuously explores industry-leading technologies and application areas, offering ODM and OEM customized services. Our products are exported to more than 100 countries and regions, earning wide acclaim from users. Supported by a professional team of engineers and sales staff, AMDIGGER is committed to delivering safe, reliable, efficient, and intelligent machinery along with timely and attentive service. Adhering to the principle of "creating higher value for customers," we welcome construction machinery dealers, service providers, and users globally to cooperate and achieve mutual growth.
Contact us now for your custom quote or project consultation.
What are the main engine options available for the Liugong 936F mini excavator?
The Liugong 936F is equipped with Cummins L9 and L9PLUS engine options delivering 231 kW and 264 kW at 2100 rpm respectively. These engines provide robust power to support the machine’s strong digging and material handling capabilities, making it ideal for demanding job site conditions and long-term durability.
Can the Liugong 936F mini excavator be customized for specific project needs?
Yes, AMDIGGER offers both ODM and OEM customization services for the Liugong 936F. This allows customers to tailor specifications such as hydraulic systems, control technologies, and attachments to meet the precise operational requirements of their projects and site conditions.
What safety features are incorporated in the Liugong 936F for on-site operation?
The machine includes a 360-degree camera system and ground-level daily inspection points, enhancing operator visibility and facilitating routine safety checks. These features contribute to safer operation on busy or confined construction sites and minimize risk during excavation tasks.
Is the Liugong 936F suitable for working in confined spaces or complex terrains?
Yes, the Liugong 936F’s longer undercarriages and heavier counterweights provide excellent stability, while its precise electro-hydraulic control and boom float ensure smooth, accurate movement. This makes it suitable for confined-space digging and precise handling tasks frequently required with wheel loader and other heavy equipment operations.
