| Operating Weight |
60000 kg |
| Power |
331kW |
| Bucket Capacity (Standard) |
4.1 m³ |
| Engine Model |
Scania DC13 |
| Configuration |
6-cylinder inline, turbocharged, air-to-air intercooler, electronically controlled direct injection |
| Rated Power (at Rated Speed) |
331kW |
| Max. Torque (Torque/Speed) |
2,007 N.m @1,600 rpm |
| Cooling System |
Water-cooled |
| Swing Speed |
8.7 rpm |
| Gradeability |
35 ° |
| Ground Pressure |
95.3 kPa |
| Max. Digging Force - Stick (ISO) |
300/285/285 kN |
| Max. Digging Force - Bucket (ISO) |
345/345/345 kN |
| Shipping length |
11870 mm |
| Shipping width |
3340 mm |
| Shipping height |
3385 mm |
| Track shoe width (std) |
600 mm |
| Boom |
6500 mm |
| Arm |
2550 mm |
| Digging reach |
11020 mm |
| Digging reach on ground |
10780 mm |
| Digging depth |
6830 mm |
| Vertical wall digging depth |
4360 mm |
| Cutting height |
10190 mm |
| Dumping height |
6840 mm |
| Minimum front swing radius |
4880 mm |
| System maximum flow |
2x448 L/min (2x118 gal/min) |
| System pressure |
35 MPa |
Optimized for Heavy-Duty Mining and Construction Operations

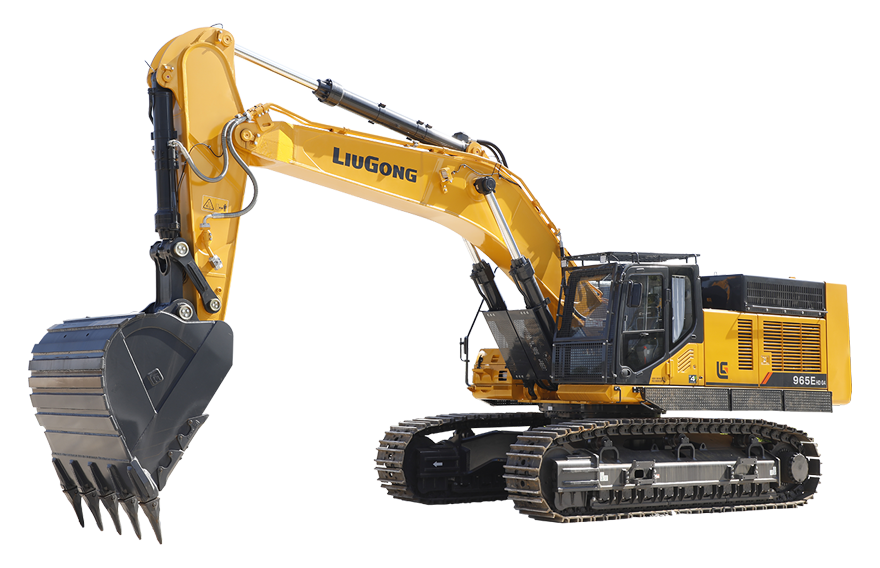

The Liugong 965EHD serves as a robust construction excavator designed specifically for professionals requiring superior payload capacity and operational durability. Its target users include mining and quarry operators, large-scale earthmovers, and heavy material handlers seeking equipment capable of withstanding continuous high-load cycles. The machine’s heavy-duty frame and 60,000 kg operating weight enable it to perform demanding tasks such as rock-arm processing, coal stripping, and shale breaking, positioning it as a preferred choice among excavator manufacturers focusing on mining-grade machinery.
Advanced Engine and Hydraulic System for Peak Efficiency
At the core of the 965EHD lies a Scania DC13 6-cylinder turbocharged engine rated at 331 kW, delivering a maximum torque of 2,007 N.m at 1,600 rpm. This powertrain is complemented by a 280cc large displacement main hydraulic pump controlled via IPC technology to enable precise synchronization between engine output and hydraulic demand, ensuring rapid response and reduced fuel consumption. Hydraulic performance metrics, including a maximum system flow of 2x448 L/min and a pressure rating of 35 MPa, translate directly into optimized digging force and cycle times, meeting stringent performance specifications sought by mining excavators.
Practical Applications and Integration in Industrial Settings
Liugong’s 965EHD excavator is engineered for extensive application across mining, quarrying, and large-scale construction projects. It excels in environments requiring high breakout forces and sustained operation, supporting workflows such as bulk earthmoving, demolition, and material handling with a 4.1 m³ bucket capacity. Its advanced cooling system, comprising water-cooled components and variable-speed fans, maintains optimal hydraulic oil and coolant temperature, thereby ensuring operational stability and compliance with industry safety standards. By integrating seamlessly with existing mine yard logistics and earthmoving systems, this giant excavator maximizes project ROI through enhanced worksite productivity.
Product Advantages
Robust Design and System Integration for Mining Operations
The structural design of the Liugong 965EHD emphasizes durability and modular adaptability, incorporating a heavy-duty mining-grade frame engineered to withstand extreme operational stress. Its hydraulic system includes a 700B large bore valve block delivering reliable fluid control, while the use of IPC control technology facilitates precise engine-to-pump matching. These design elements, refined by leading excavator manufacturers, contribute to reduced mechanical wear and minimize downtime, supporting continuous operation in challenging environments such as open-pit quarries and coal mines.
Superior Performance and Operator Efficiency in Harsh Conditions
Performance advantages include class-leading fuel efficiency achieved through optimized engine parameters and intelligent hydraulic control, allowing operators to maintain productivity with reduced operating costs. The excavator’s cab ergonomics and control interfaces provide improved usability, supporting long shifts in demanding sites. Fast swing speeds, high digging forces, and extended reach capabilities enable precise material handling and efficient cycle times. These features translate into tangible value for heavy equipment fleets facing stringent operational demands in mining and construction sectors.
Use Scenarios
Application in Surface Mining and Quarry Environments
In large-scale surface mining and quarry operations, the Liugong 965EHD serves as a primary tool for heavy digging, rock-arm processing, and material loading. Its mining-grade structural components and robust hydraulic system ensure reliable performance under continuous hard rock excavation and high breakout force requirements. By integrating with mine haulage trucks and crusher equipment, this mining excavator enhances operational flow and throughput efficiency while maintaining compliance with stringent environmental and safety standards typical of mining sites.
Role in Construction Projects Requiring High-Capacity Earthmoving
Within demanding construction and land clearing projects, this construction excavator provides efficient bulk earthmoving, deep digging, and demolition capabilities. Its advanced engine and hydraulic technologies support rapid cycle times for high-volume tasks, while its cooling system reduces overheating risks during sustained usage. The 965EHD’s compatibility with auxiliary attachments and ease of integration with jobsite scheduling and fleet management systems enable contractors to optimize asset utilization and reduce project timelines substantially.
About Us
AMDIGGER is a comprehensive service provider of engineering machinery products, delivering one-stop solutions for mines, construction projects, and yards worldwide. Our product range includes excavators, loaders, bulldozers, rollers, graders, forklifts, truck cranes, mining trucks, and more, all designed to offer complete equipment solutions. We partner with internationally recognized brands such as LIUGONG, XCMG, SHANTUI, and OOK, alongside our own "AMDIGGER" series products. To meet professional, personalized, and diversified customer needs, AMDIGGER continuously explores cutting-edge technologies and application areas, providing ODM and OEM customized services. Our products are exported to over 100 countries and regions, earning broad user acclaim. Supported by a professional engineering and sales team, we commit to delivering safe, reliable, efficient, and intelligent machinery with timely, attentive service. Adhering to the principle of "creating higher value for customers," we welcome cooperation proposals from construction machinery dealers, service providers, and users worldwide for mutual development and win-win results.
Contact us now for your custom quote or technical consultation.
FAQ
What is the lead time for delivery of the Liugong 965EHD excavator?
Lead times depend on your location and current inventory. To obtain accurate delivery schedules for the excavator, please contact AMDIGGER sales directly. This ensures you receive the most updated information for planning your mining or construction projects involving our excavator manufacturers.
Can AMDIGGER provide customization services for the 965EHD excavator?
Yes, AMDIGGER offers both ODM and OEM customization services tailored to professional, personalized, and diversified requirements. This allows clients to adapt the mining excavator features to specific operational needs, ensuring optimized performance and compliance with project demands.
What installations and site preparations are required for this heavy-duty excavator?
The Liugong 965EHD is designed for straightforward installation at mining or construction sites. Proper ground conditions and crane or lifting equipment may be necessary for initial setup. AMDIGGER’s technical team can provide support or operator training to ensure the giant excavator is commissioned safely and efficiently.
How does the 965EHD model maintain fuel efficiency during intensive operations?
The 965EHD incorporates a Scania DC13 engine, a 280cc large displacement hydraulic pump, and IPC hydraulic control. These features combine to deliver class-leading fuel economy, optimizing power use under heavy loads typical of construction excavator and mining applications, reducing operational costs without sacrificing performance.
