Specifications
Bucket Capacity 0.4m3
Swing Speed 0-12
Gradeablity 35
Max.Bucket Digging Force: 58KN
Max.Arm Digging Force: 40KN
Engine Model OSF: 2,8KN
Power/revolution speed 53/2200KW/rmp
Tire Model
System Pressure 27.5MPa

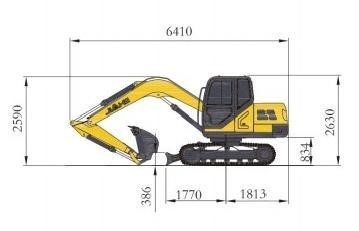

Machine size
Dimension Length*Width*Height : 6410x2278x2630mm
Cabin Height: 2630mm
Axle Base: 2209mm
Wheel(track)Distance: 1750
Minimum ground clearance :375
Tail Swing Radius :1813

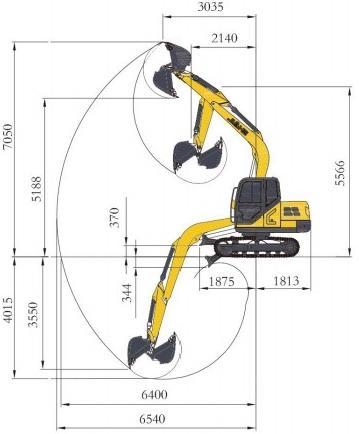

Working range
Max.Digging Height :7050mm
Max.Dumping Height: 5188mm
Ma x.Digging Depth:4015mm
Max.Vertical Digging Depth :3550mm
Max.Digging Radius :6540mm
Min.Swing Radius: 2140mm
Max.Dozer Blade Lifting Distance :370mm
Max.Dozer Blade Cutting Distance: 344mm
Product AdvantagesInnovative Structural and System Design for Enhanced AdaptabilityThe AMDIGGER XZ90 incorporates modular design principles typical of competitive compact excavator frameworks from respected excavator manufacturers. Its compact chassis and minimized tail swing radius reduce spatial demands, enabling precise operation near obstacles. The hydraulic system is engineered for high pressure and efficient flow control, supporting a range of attachments without compromising performance. Components have been selected for durability and ease of maintenance, following AMDIGGER’s ODM/OEM customization capabilities to optimize the machine’s configuration for specialized roles. This structural architecture supports efficient transportability and quick setup, which are critical to maximizing operational uptime in variable job site conditions.Superior Performance, Usability, and Value for Construction ProfessionalsFrom an operational standpoint, the XZ90 small excavator delivers dependable power output alongside responsive hydraulic controls tailored for fine manipulation. Its ergonomic cab design and intuitive interface enhance operator comfort and precision, which reduces fatigue and boosts productivity during extended use. The factory-direct acquisition model offers competitive cost advantages, including warranty coverage and comprehensive after-sales services, which lower total cost of ownership. This reliability combined with adaptable features provides users clear operational value, particularly in contracts with tight timelines or complex site logistics. The machine’s capabilities make it well suited for fleet expansion or as a specialist tool within a broader equipment portfolio.Use ScenariosEfficiency in Small-Scale Urban Excavation ProjectsUrban construction sites often face spatial restrictions and regulatory requirements for noise and emissions. The AMDIGGER XZ90 compact excavator excels in these contexts by combining small size with robust digging capacity, facilitating utility trenching, foundation preparation, and landscaping in confined environments. Its tailored hydraulic power supports rapid cycle times without compromising precision. The minimal tail swing and manageable dimensions allow operators to maneuver safely around utilities and structures, complying with urban worksite restrictions. Integration into contractor workflows is streamlined by the machine’s compatibility with common attachments and site data systems, enabling timely completion of excavation phases within multifaceted urban projects.Operational Role in Equipment Rental and Fleet Versatility at DepotsIn equipment rental yards and construction depots, versatility and reliability of compact excavators are paramount to support diverse client needs. The XZ90 small excavator’s factory-direct availability and customizable options enable rental operators to offer a flexible asset capable of performing multiple excavation tasks across varied terrains and project types. Its dependable hydraulic and mechanical systems reduce downtime risk, while the inclusion of 24/7 after-sales support enhances asset management confidence. This excavator’s dimensions favor transport and storage logistics, allowing depot managers to maximize fleet utilization and respond quickly to client demands for compact, high-performance machinery suitable for quick-response assignments or operator training scenarios.FAQ What distinguishes the AMDIGGER XZ90 from other compact excavators?The AMDIGGER XZ90 features a 0.35 m³ bucket capacity and a 28.5 kW engine, optimized for small-scale tasks requiring maneuverability. It offers factory-direct pricing about 30% below distributors, along with a 12-month warranty and 24/7 after-sales support, positioning it as a cost-effective choice among compact excavator options.Can the AMDIGGER XZ90 be customized to fit specific project needs?Yes, the AMDIGGER XZ90 supports various customization options including bucket modifications and hydraulic system upgrades. These tailored configurations allow businesses to optimize the machine’s performance to meet specialized site requirements or application demands within the broader lineup of excavator products.What logistics and delivery processes does AMDIGGER use for exporting machinery?AMDIGGER exports its machinery, including the XZ90 mini excavator, to over 100 countries and regions. The company manages shipping directly from manufacturers to ensure cost efficiency and timely delivery, complemented by global after-sales services to support operational reliability in diverse markets.What maintenance support is available for the AMDIGGER XZ90 mini excavator?AMDIGGER provides a 12-month warranty on the XZ90 alongside 24/7 after-sales assistance. The company’s professional engineering and service teams support ongoing maintenance needs, ensuring safe, reliable operation and minimizing downtime for businesses relying on the compact excavator in demanding environments.
