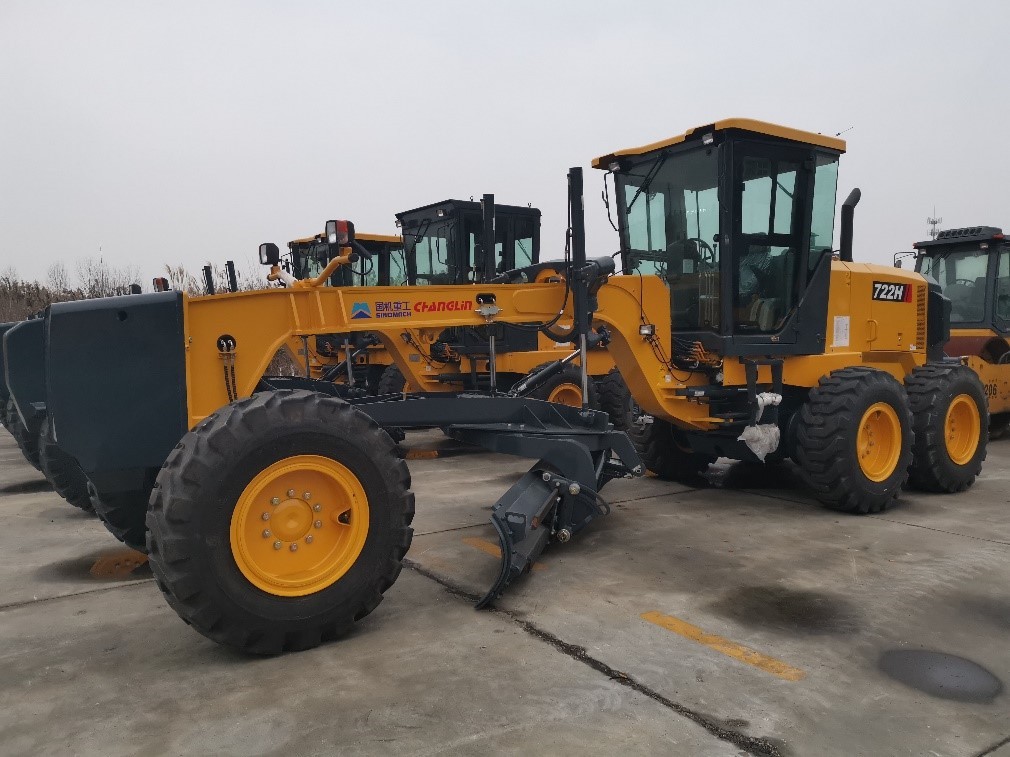

The SINOMRCH 722H motor grader is a 16.1-ton heavy-duty road grader designed for road construction, road maintenance, land leveling, site preparation and other earthmoving applications.
Powered by a ShangChai SC11CB220G2B1 engine, the 722H combines strong traction, flexible grading performance and reliable operation for demanding working conditions. Its electro-hydraulically controlled power-shift transmission provides 6 forward and 3 reverse gears, allowing operators to select the appropriate travel speed for different grading operations.
The machine features a hydraulic-locking, auto-lock/unlock NO-SPIN differential, helping maintain traction and stability when working on uneven or challenging surfaces. Its articulated frame and flexible blade suspension provide a wide working range and precise grading capability.
| Overall Dimension | |
| Length | 9250mm |
| Width | 2600mm |
| Height(To the top of the cab) | 3420mm |
| Wheel base | 6100mm |
| Tread | 2120(mm) |
| Min. turning radius | 7.4（m） |
| Main Technical Specification | |
| Operating weight | 16100kg |
| Blade length | 4320mm |
| Blade height | 545mm |
| Shovel Blade thickness | 20mm |
| Max. lift above ground | 450mm |
| Max. grading depth | 535mm |
| Max. shoulder reach outside rear tire | 2400mm |
| Traveling speed(Km/h), | 6 forward and 3 reverse |
| (1) forward | 6.7/10.2/15.2/22.5/31.6/45.1 |
| (2) reverse | 6.7/15.1/31.3 |
AMDIGGER provides construction machinery solutions for customers, contractors, dealers and project operators worldwide. In addition to motor graders, AMDIGGER supplies excavators, wheel loaders, bulldozers, mining trucks and other construction equipment.
We can assist customers with machine selection, configuration, quotation, export logistics and project-specific equipment solutions.
Contact AMDIGGER for the latest price, available configurations and shipping options for the SINOMRCH 722H motor grader.
The SINOMRCH 722H is suitable for road construction, road maintenance, site grading, land leveling, earthmoving and infrastructure development.
Its 16.1-ton operating weight, 4.32-meter blade and articulated frame make it suitable for projects requiring stable grading performance and a wide working range.
Road Construction
Used for leveling, shaping and finishing road surfaces.
Mining & Industrial Sites
Suitable for maintaining haul roads, access roads and large working areas.
Construction Projects
Used for site preparation, earthmoving and final grading.
Municipal Infrastructure
Suitable for road maintenance and infrastructure development.
